Basic Info.
Location
Public Use
Number of Charging Interfaces
One Pile with Multiple Charges
Start Mode
RFID Authentic
After-Sales Service
2 Years Warranty
Type
Fast EV Charging Station
Certification
CE, ISO, RoHS
Warranty
24 Months
AC Supply System
Three-Phase,5 Wire AC System
Nominal Input Voltage
AC380V+-15%/AC260-530V
Ambient Temperature Range
-25-55 Degree
Type of Each Output
DC200-1000V
Single Output Max.Current
200/250AMP
User Authentication
Qr Code/RFID Card /Password Login
Display & Touch-Screen Size
7inches Touch Screen with Shell
Communication Between Evse and Central S
Ocpp 1.6] Protocol(Optional)
Interface Between Charger and Cms
Ethernet/3G/4G/Wif1(Optional)
Executive Standard
IEC621962017,IEC618512017,Saej1772,Chademo,GB/T202
Safety Parameters
Over Current,Under Voltage, Residual Current,Surge
Transport Package
Wooden Stake + Cardboard-Shell
Specification
1150*950*1928/ 430*201*1600
Trademark
Future Digital Energy
Origin
Shenzhen
HS Code
8504409999
Production Capacity
50000
Product Description
Product Description:

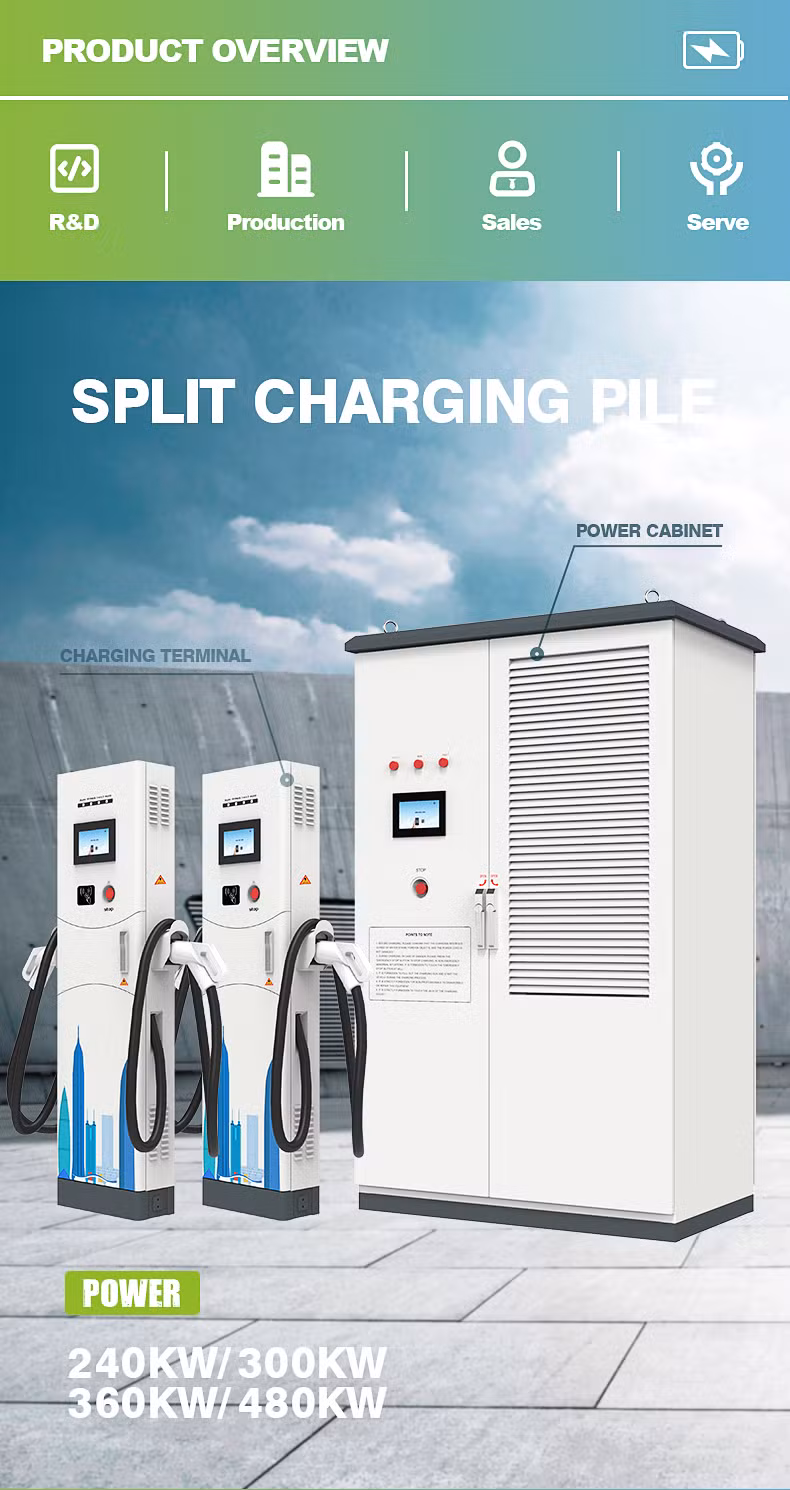

| Product Name | DC 480KW Eight Guns CCS2 CCS1 EV Charging Station |
| Applicable | They are suitable for occasions such as city special charging stations that provide charging for bus, taxi, public service vehicles, sanitation vehicles,logistics vehicles, etc.; city public charging stations that provide charging for private cars, commuter, bus; intercity highway charging stations and other occasions that need special DC fast charging. |
| Connector | IEC 61851 IEC 62196 |
| Pakage | Wooden Stake + Cardboard Shell |
| NO. | Parameters | Requirements | |
| General Requirements | |||
| 1 | EV Charger Type | DC | |
| 2 | Charger Capacity | 360KW | |
| 3 | Product Model NO. | DCF360D | |
| 4 | Mounting | Ground-Mounted ( Sequential ) | |
| Input Requirements | |||
| 5 | AC Supply System | Three-Phase, 5 Wire AC system | |
| 6 | Nominal Input Voltage | AC380V±15% | |
| 7 | Input Frequency | 45-65Hz | |
| 8 | Cable length | 5m | |
| Environmental Requirements | |||
| 9 | Ambient Temperature Range | -25 to 55°C | |
| 10 | Ambient Humidity | 5 to 95% | |
| 11 | Storage Temperature | -40 to 70°C | |
| Electrical indicators | |||
| 12 | Current Limit Protection Value | ≥110% | |
| 13 | Steady pressure precision | ≤±0.5% | |
| 14 | Steady flow accuracy | ≤±1% | |
| 15 | Power Factor | ≥0.99(50% load above) | |
| Mechanical Requirements | |||
| 16 | IP Ratings | IP 54 | |
| 17 | Cooling | Air-cooled | |
| Output Requirements | |||
| 18 | Connector Terminal | 3 | |
| 19 | Number of Outputs | 6 | |
| 20 | Type of Each Output | DC200-750V | |
| 21 | Single Output Max. Current | 200 Amp | |
| User Interface & Display Requirements | |||
| 18 | Display & Touch-Screen Size | 7 Inches Touch Screen with Shell | |
| 19 | User Authentication | QR Code / RFID Card / Password Login | |
| 20 | Metering Information | Consumption Units | |
| Communication Requirements | |||
| 21 | Communication between EVSE and Central server | OCPP 1.6J Protocol (Optional) | |
| 22 | Interface between Charger and CMS | Ethernet/3G/4G/WIFI (Optional) | |
| Protection & Safety Requirements | |||
| 23 | Executive Standard | IEC 62196 2017, IEC 61851 2017 | |
| 24 | Safety Parameters | Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc. | |
