Basic Info.
Model NO.
EV44
Installation
Floor Type
Charge Method
Quick Charge
Transport Package
Wooden
Specification
1200 x 450 x 330mm
Trademark
ARK or OEM
Origin
China
HS Code
8504409999
Product Description
| Product Highlights | |

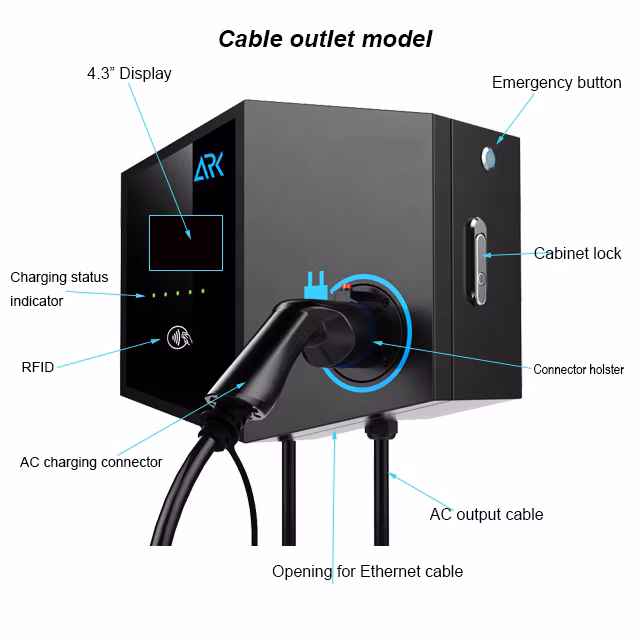

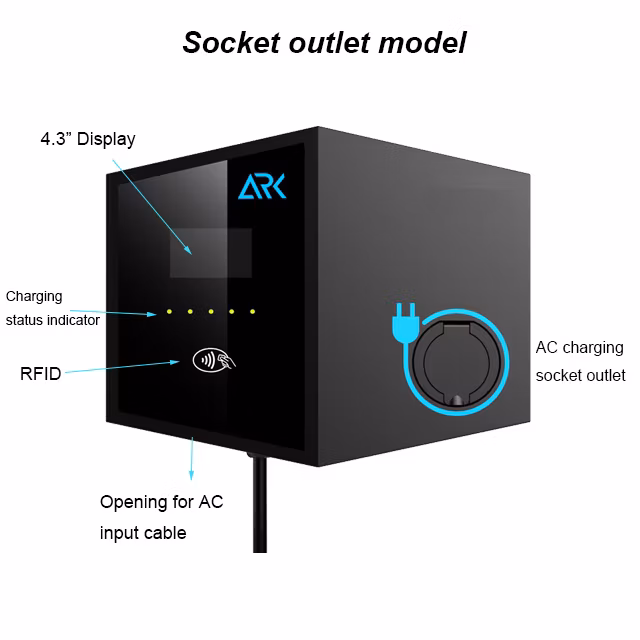

| 44kW Dual Outlets AC EV Charging Station | |
| Outlet connector | Type-2 socket or connector |
| Display | 4.3" LCD Display |
| RCCB | Type-A + 6mA DC or Type-B (optional) |
 |  |
 |  |  |
| Specification | Model | AKEV44 |
| System | Housing material | Metal enclosure |
| Dimension (H x W x D) | 1350*450*330mm | |
| Installation method | Pedestal mount | |
| Cable routing | Bottom inlet wiring | |
| Weight | N.W.: 55kg | |
| Charging standard | IEC 61851-22 | |
| Charging outlet | Type-2 socket or connector | |
| Outlet number | 2 | |
| Input | Input voltage | 400Vac +/-10%, 3-phase |
| Input frequency | 50Hz/60Hz | |
| Output | Max output power | 44kW |
| Measuring accuracy | Level 0.5 | |
| Output voltage range | 400Vac +/-10%, 3-phase | |
| Output current range | 64A | |
| RCCB | Type-B, sensitivity: 30mA | |
| General | Charging type | Mode 3 |
| User Interface | RFID, LCD Display | |
| AC connector type | IEC 62196 Type-2 | |
| Communication | PWM, Ethernet, LTE (optional), OCPP 1.6J | |
| Application place | Indoor/Outdoor | |
| Working temperature | -25°C - +55°C | |
| Working humidity | 5% - 95% non-condensation | |
| Altitude | <2000m | |
| Protection grade | IP55 | |
| Cooling | Natural cooling | |
| Safety standard | Compliant with CE,EN 61851-1:2011 EN 61851-22:2002 EN 61851-21-2:2017 | |
| Security design | Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection |
