Basic Info.
Model NO.
200kw
Location
Public Use
Number of Charging Interfaces
One Pile with Multiple Charges
Start Mode
Credit Card Payment, Mobile Remote Operation, RFID Authentic
Product
DC EV Charger
Certification
CE, TUV
Warranty
2 Years
Input Voltage
3-Phase 400V
Output Voltage
DC200~750V
Power
60kw,120kw,180kw,200kw, 240kw
Cable Length
5m or Customized
Payment Method
RFID Card,APP,Ocpp
Ingress Protection
IP65
Enclosure
Galvanized Steel
Protection
Over Current,Under Voltage,Over Voltage,Short Circ
Connector
CCS/Chademo/GB/T/Type2
Display
7 Inch Touch LCD Screen
Application
Ideal for Commercial, Workplace, Fleet and Public
Installation Method
Floor-Standing
Transport Package
Wooden Case
Specification
690 x 450 x 1686mm
Trademark
Risen
Origin
China
HS Code
8504409999
Production Capacity
200PCS/Month
Packaging & Delivery
Package Size
850.00cm * 750.00cm * 1800.00cm
Package Gross Weight
280.000kg
Product Description
Risen Chargers is a China manufacturer of EV charging stations. we design, develop, and manufacture charging infrastructure for electric cars, developing software and a mobile application.
Main Features of Our E-Charging Machines:
Δ Max output power 60kW, 90kW, 120kW, 150kW,180kW, 200kW
Δ Charging time 30 ~ 60mins
Δ Simultaneously charging up to 2 EVs
Δ Support multi-standard charging including CCS, CHAdeMO, and GB/T.
Δ Intelligent charging and dynamic load balancing
Δ 7'' LCD screen with user-friendly interface
Δ Max output power 60kW, 90kW, 120kW, 150kW,180kW, 200kW
Δ Charging time 30 ~ 60mins
Δ Simultaneously charging up to 2 EVs
Δ Support multi-standard charging including CCS, CHAdeMO, and GB/T.
Δ Intelligent charging and dynamic load balancing
Δ 7'' LCD screen with user-friendly interface
Advantages of fast EV charging stations:
Δ Support Multi-ports CCS1, CCS2, CHAdeMO,and GBT connector combain
Δ Remote station monitoring
Δ Parallel charging via DC ports
Δ Dynamic power redistribution to DC ports
Δ Ethernet / Wifi / 4G
Δ Competitive cost
Δ Support Multi-ports CCS1, CCS2, CHAdeMO,and GBT connector combain
Δ Remote station monitoring
Δ Parallel charging via DC ports
Δ Dynamic power redistribution to DC ports
Δ Ethernet / Wifi / 4G
Δ Competitive cost
Risen produce fast charging stations with a capacity of 60 to 320 kW with various types of connectors: Type1, Type 2, CHAdeMO, CCS. They are

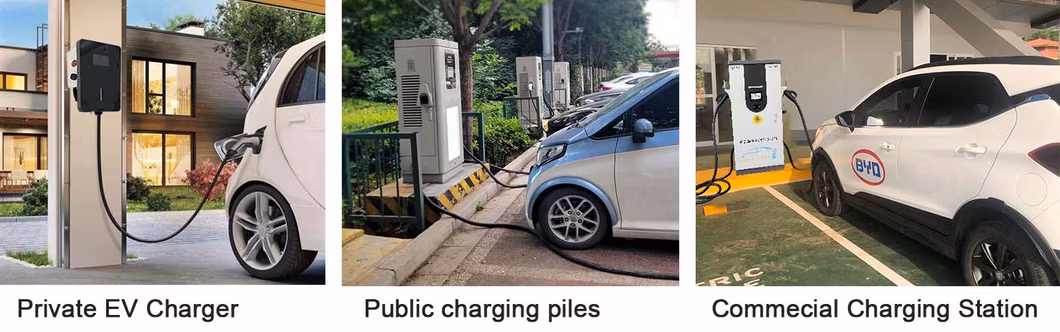

able to charge 80% of an electric vehicle's battery in just 40-60 minutes, depending on the car's battery. Fast charging stations are widely installed in parking lots of shopping and office centers, hotels and restaurants, fitness centers and beauty salons, as well as at gas stations and along streets and highways.
| Power Model | DCFC 60KW-120KW | DCFC 160KW-240KW | ||||
| Charging Connector | Dual GBT/CCS, or CCS/GBT + CHAdeMO | |||||
| Input Voltage Type | TN-S(Three Phase Five Wire) | |||||
| Input Voltage | 400V±15%/440V±15%/480V±15% | |||||
| Output Voltage | 200V-750V/150V-1000V | |||||
| Working Frequency | 45~65Hz | |||||
| Power Factor | ≥0.99 | |||||
| Efficiency | ≥95% | |||||
| Output Current | 5~200A | 5~300A | 5~400A | 5~500A | 5~500A | 5~500A |
| Display | 7'' LCD Touch Screen | |||||
| Protection | Over-Current, Over-Voltage, Under-Voltage, Ground-Fault, Over-Temperature, Short-Circuit & Surge Protection...etc. | |||||
| User Authentication | QR Code, RFID, Mobile APP, POS/Credit Card (Optional) | |||||
| Network Connection | Internet Access Via 4G / Wi-Fi / Ethernet | |||||
| Communication Protocols | OCPP1.6J or OCPP2.0 | |||||
| Working Temperature | -30ºC ~ +50ºC | |||||
| Storage Temperature | -35ºC ~ +55ºC | |||||
| Operating Humidity | ≤95% Non-Condensing | |||||
| Protection Level | IP65 | |||||
| Acoustic Noise | <60dB | |||||
| Cooling Method | Air-Cooling | |||||
| Dimension(W x D x H) | 840 x 750 x 1800mm (±20mm) | 1000 x 950 x 1800mm (±20mm) | ||||
| Cable Length | 5m or Customized | |||||
| Warranty | 24 Months Warranty Available | |||||
