Basic Info.
Model NO.
SAE7000
Frequency
50/60Hz
Output Power
3.5/7/9.6/11kw
Plug
Type 1
Charging Cable
5m
Installation Method
Wall-Mount/Floor-Stand
Protection Level
IP65
Dimension
180*59.5*253mm
Weigth
5/6kg
After-sales Service
One Year
Type
Fast EV Charging Station
Certification
CE, ISO, TUV, RoHS
Warranty
12 Months
Transport Package
Carton
Origin
China
HS Code
8504409999
Production Capacity
20000
Product Description

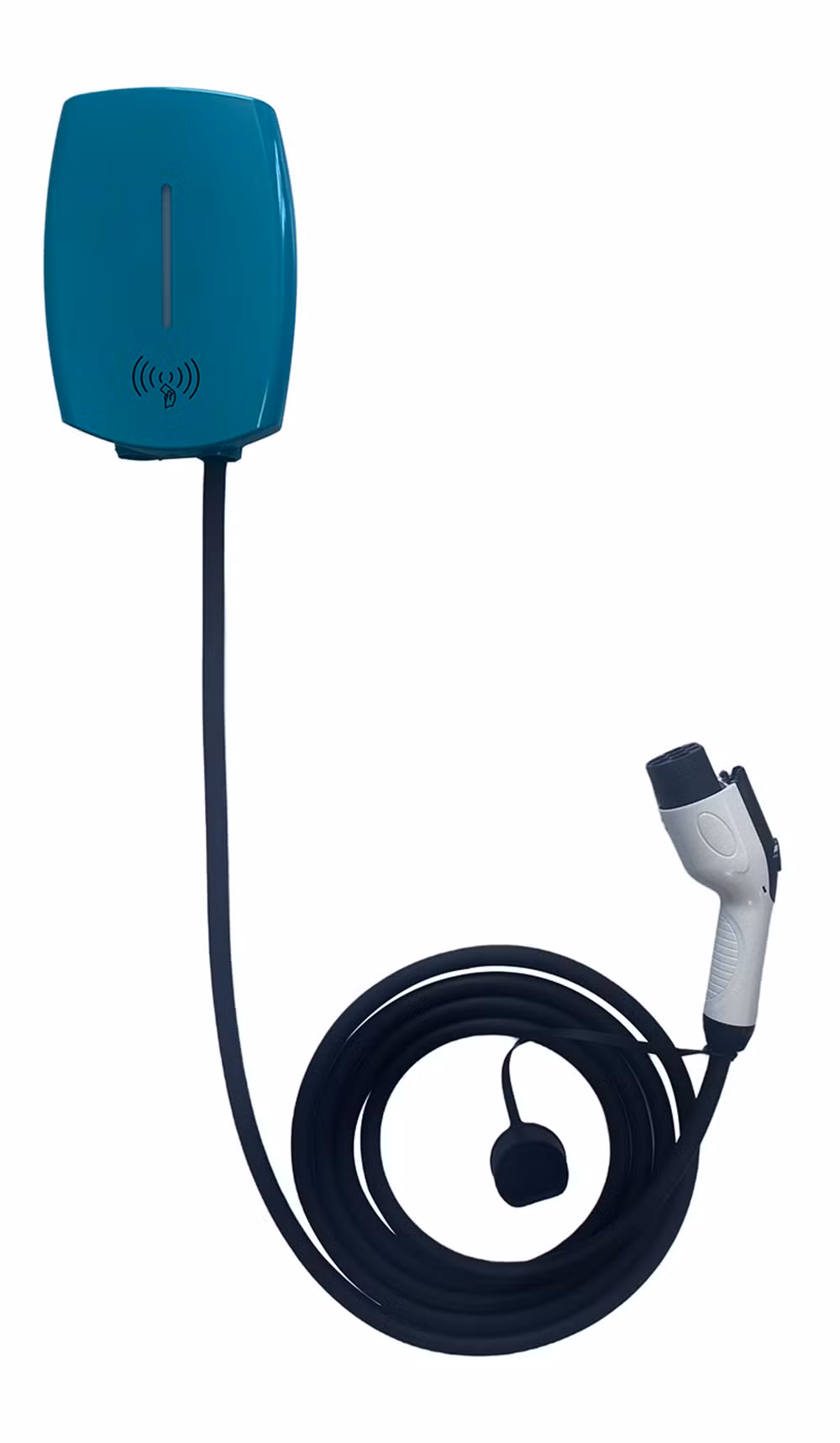

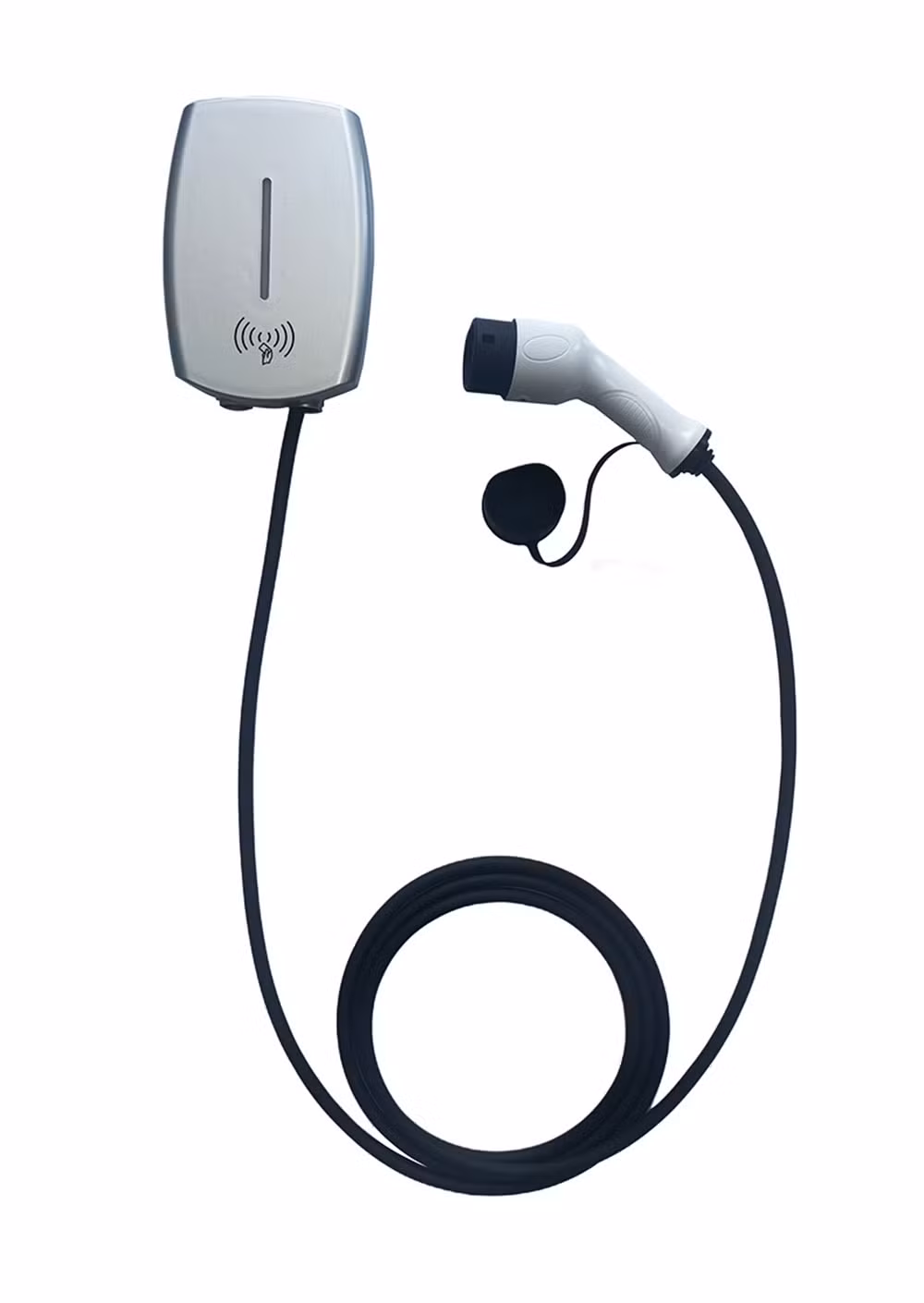

| Product Name | Type 1 Wall-mounted EV Charging Station |
| Use Case | home/personal/vehicle |
| Appearance and Structure | |
| Product Attributes | identification(swipe card) |
| Dimension | 180*59.5*253mm |
| Installation | wall-mounted/column |
| Gross Weight | 5/6/kg |
| Cabling Mode | down in and out |
| Cable Lenth | 5M |
| Functional Design | LED light bar/display screen(optional) |
| Electrical Performance | |
| Rated Voltage | AC110-220V±10% |
| Frequency | 50/60Hz |
| Rated Power | 3.5/7/9.6/11KW |
| Maximum Current | 16/32/40/48A(single phase) |
| Safety | |
| Applied Environment | Indoor/outdoor |
| Ingress Protection | IP65 |
| Impact Protection | IK10 |
| Work Temperature | -30ºC~+55ºC |
| Work Humidity | 5%~95% without any condensation |
| Work Altitude | <2000m |
| Electrical Protection | Over current protection; Residual current protection; Ground protection; Surge protection; Over/under voltage protection; Over/under frequency protection; Over/under temperature protection |
